HIGH POWER AMPLIFIER

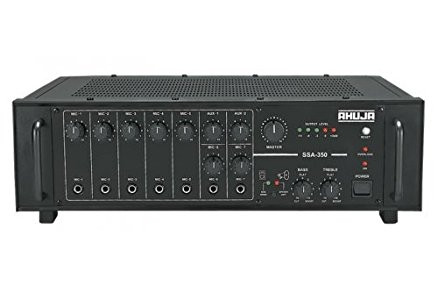

Ahuja SSA-350 350 Watts High Power PA Amplifier.

Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme

• Line Input for connecting the output from any external mixer or permitting SSA-350 to be used as a Booster Power Amplifier

• Resettable circuit breaker for protection against overload and short circuit

• Instant transfer to DC power (Car Battery) if AC power fails

• Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units

Outputs : Preamp 200mV/600Q, Line 1V/1kO

Model No : SSA-350

Tone Controls : Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Type of Product : High Power PA Amplifier

Speaker Outputs : 4Q, 8Q, 70V & 100V

Type : Amliper

Power Consumption : AC: 660VA DC:6A

Output Regulation : ^ 2 dB, no load to full load at 1kHz

Signal to Noise Ratio: 60dB

Input Channels : 7 x Mic 0.8mV/4.7kQ, 1 * Aux 100mV/470kQ, 1 * Aux 200mV/470kQ, 1 * Line 1V/50kO

Frequency Response : 50-15,000Hz ±3dB

Dimensions : W480 x H160 x D360 mm

Power Output : 450W Max.. 350W RMS at 10% THD. 320W RMS at 5% THD. 300W RMS at 2% THD

Power Supply : AC: 220-240V 50/60HZ DC: 36V (3 x 12V Car Batten/)

Watts :350 Watts
